LD2 – Rigging-Set with Harken winch and steel bollard

Arbpro LD2 Rigging System

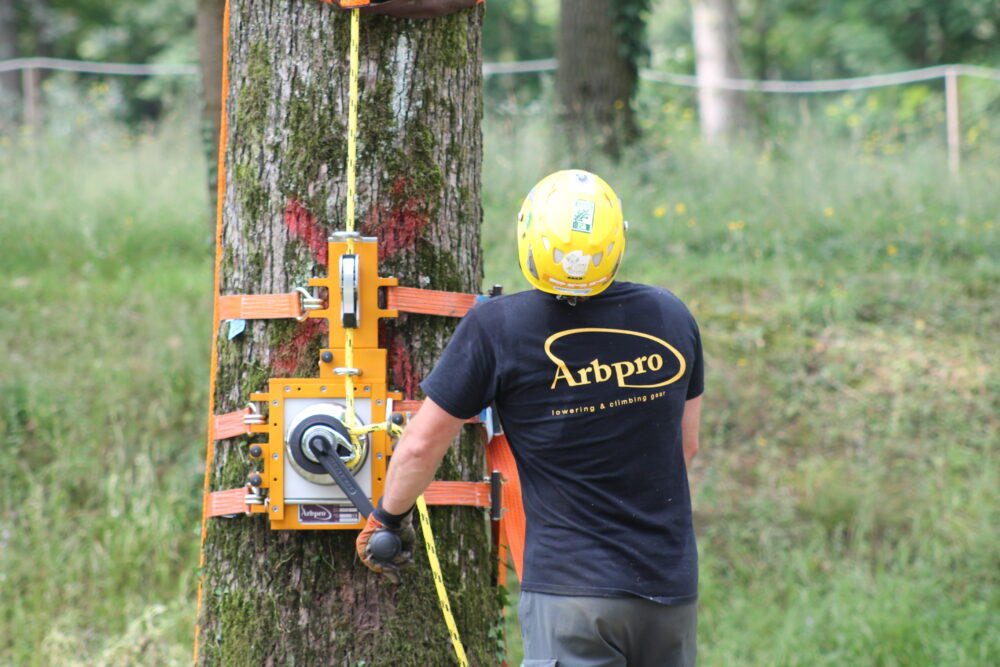

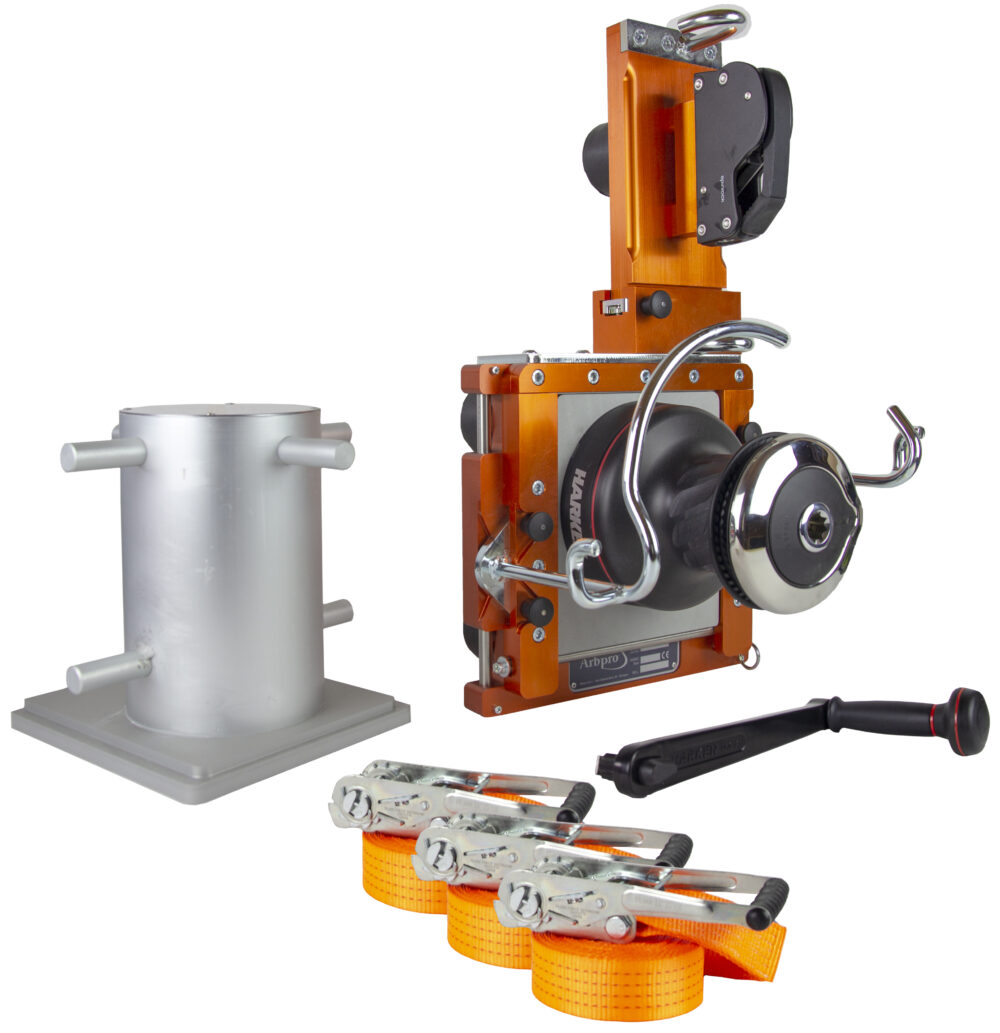

The Arbpro LD2 Rigging System is a modular, CE-certified lifting and lowering device designed for demanding tree rigging operations. It combines a powerful 2-speed Harken winch (44:1 & 13.5:1) with a large-diameter friction bollard(Ø 150 mm), both of which can be mounted on a robust anodized aluminum frame using corrosion-resistant stainless steel bolts—completely weld-free. Thanks to ist modular design, the winch and bollard can be quickly interchanged. A separately mountable Spinlock XCS rope clutch (breaking load: 7500 kg) allows secure load holding, even under tension, and enables safe swapping between components when needed. The system includes three heavy-duty ratchet straps and rubber feet on the frame, ensuring secure and bark-friendly attachment to the tree. The large rope contact surface on the bollard and the use of heat-conductive aluminumreduce rope glazing and allow for precise control during lowering. Users value is efficiency, flexibility, and ease of use—even heavy loads can be moved safely and with minimal effort. A true game changer, especially for complex tree removals.

Technical Specifications:

• Material: Anodized aluminum frame (16.5 kg), stainless steel bolts
• Winch: Harken 2-speed winch (44:1 & 13.5:1), 9.5 kg
• Bollard: Ø 150 mm, 5 kg
• Rope clutch: Spinlock XCS, breaking load 7500 kg
• Rope compatibility:
  • Winch/Clutch: 12–16 mm
  • Bollard: 12–19 mm
• Safe working loads:
  • Winch: 1200 kg
  • Bollard: 1500 kg
• CE-compliant according to Machinery Directive 2006/42/EC
• Rubber feet allow secure mounting even on protected trees
